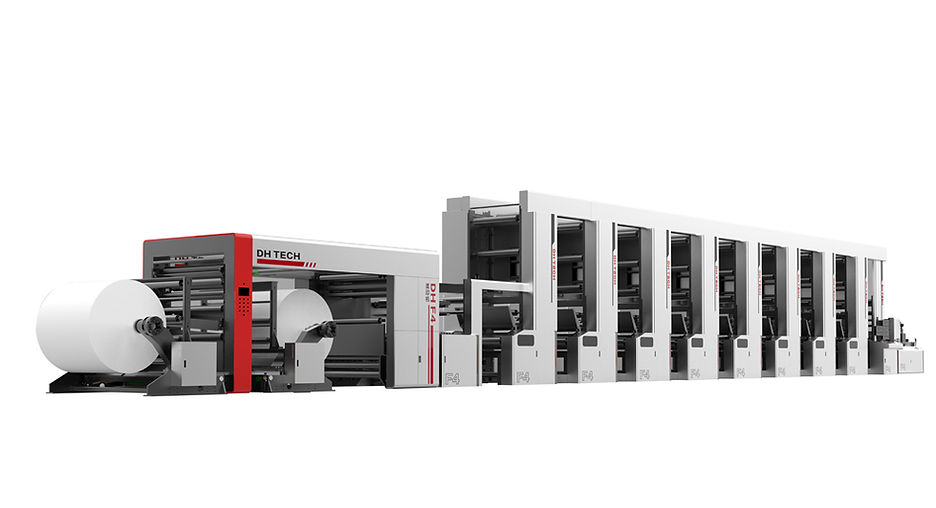

F4 Full servo flexo printing machine

Description: DHF401300

Max unwinder diameter: 1500mm

Max rewinder diameter: 1500mm

Repeat length: 450mm - 1100mm

Max web width: 1320mm

Max printing width: 1300mm

Power: 380V 3PH 50Hz

Machine design speed: 0—350m/min

Printing thickness: 1.7mm

Double side tape thickness: 0.38mm

Printing substrate: Paper 40 - 300gsm

Frame: Alloy casting

Automatic stop when paper broke: Yes

Automatic alert when paper less: Yes

Meter counting and quantity counting: Yes

Speed adjustment in many stages: Yes

Multi-point speed adjusting: Yes

Machine colour: Grey with LED light

Unwinding structure features

Unwinding unit 2 sets
Max unwinding diameter 1524 mm
Shaftless unwinding, the chuck has self-locking function when rotate
Equipped with 3 inch, 6 inch, 12 inch cylindrical step chuck, with chuck rotation self-locking device
Electric control arms around, move up and down, single arm around mobile convenient lifting paper rolls
Automatic paper connection speed is ≤ 150 meters/minute

Splicing system

Zero speed splicing. end-to-end splicing manner so that printing material thickness shall not be obviously increase
Vacuum suction, preset tape device which can realize two-side adhesion with tapes to ensure firm paper connection
With a new design, hob-type cutting device to achieve paper cutting
The paper cutting is specially designed to bevel to reduce the impact when the interface enters the printing

Unwinding structure features

Equipped with automatic tension control system, including pneumatic brake, tension sensor and controller, electronically controlled switching valve
The current roll diameter can be displayed in real time, and the alarm roll diameter value can be set. Once current roll diameter achieve setting diameter, system will give alarm.
with fault analysis and record function

Paper storage device

Equipped with paper storage device
Motor drive and electric eye detection for automatic storage
The fully closed loop control is adopted for the storage and tension control of the storage material so that the tension is stable
Multi-layer paper path design to reduce use area

Unwinding unit 2 set

Use shaftless bracket, 6 and 3-inch chuck
Max unwinding diameter 1500 mm
Paper roller is motor-controlled to move left and right
Equipped with automatic tension control system
Setting minimum roll diameter free

Paper storage device

Equipped with paper storage device
Motor drive and electric eye detection for automatic storage
The fully closed loop control is adopted for the storage and tension control of the storage material so that the tension is stable
Multi-layer paper path design to reduce use area

Web cleaning

Non-contact type web clean system to guarantee the cleanness of substrates without any damage to paper surface.
First remove static, then clean the dust in vacuum and then remove static.

Paper splicing unit 1 set

Auto paper splicing without stopping machine, end-to-end splicing manner so that printing material thickness shall not be obviously increase
Vacuum suction, preset tape device which can realize two-side adhesion with tapes to ensure firm paper connection
Cutting device to ensure accurate cutting, and firm connection between the tape and paper.
Paper splicing speed should lower than 150m/min

Web guide system

Equipped with pneumatic paper-holding device to splice the paper
Inspection: the edge
Web guide precision: ±0.02mm
Adopts the photoelectric sensor for web guide transmission
Electronic web guide traction device. If there is any excursion in paper feeding, the system will have a constant and accurate adjustment.
Adopts closed-loop control system to accurately detect the deviation and correct it.
Hard anodization to the paper guide rollers HV800-1000

Infeed tension is closed loop controlled by servo motor from LENZE Germany.
One servo motor from LENZE Germany
One servo motor driven system from LENZE Germany
Nip roller, composed by a steel roller covered with rubber of hardness 65/70 shores, to lay paper on the tension roller.
The roller is mounted on sealed ball bearings, and is pressed laterally through two pneumatic cylinders, one on each side, having independent pressure control manually adjustable.

7 printing station with full servo motor，last section with UV

Specially designed full servo driven structure to avoid any printing defects because of gears.
Each printing station has 8 Germany servo motors, one for impression cylinder, one for Anilox roller, one for printing roller, four for position and pressure adjustment and one for register control
Sleeve technology on anilox roller
During the printing operations the mandrel is supported also on the front side of the machine by a needle bearing.
Each anilox roller is driven by servo motor from LENZE Germany.
The anilox roll will rotate to prevent the ink on its surface from drying and blocking holes on it
There are ink splash guards on both sides
On the machine operation and non-operation side, the anilox roller and the support structure are stably supported by two upper and lower linear guide
Pressure adjustment between plate cylinder and anilox roller using servo motor
Each station has one servo motor and one motor driven unit for anilox roller from LENZE Germany.
Sleeve technology on plate cylinder
Sleeve has a lateral cavity to fit with a pin located on the mandrel, for longitudinal positioning. This device is necessary to use the pre-register system.
The rolling tracks for the supporting bearings needle type, located on the journals of the supporting mandrel, are superficially hardened
Each plate roller is driven by servo motor from LENZE Germany.
Each station has one servo motor and one motor driven unit for printing plate from LENZE Germany.
Independent servo motor driven impression cylinder
Impression cylinder is chrome coated to protect it from external corrosion.
Each impression cylinder is driven by servo motor from LENZE Germany.
Each station has one servo motor and one motor driven unit for impression cylinder from LENZE Germany.
Pre-Register system
Registering system used to minimize the distance to length register position of the plate sleeves mounted on the requested printing units, at the start of the machine. This system allows fast set up of the length registration and considerably reduces paper scrap during start up procedure
The system requires an accurate positioning of the plates, with a precise circumferential alignment to a reference mark located on the supporting sleeve. A cavity on one edge of the sleeves must be provided to fit on a reference pin located on the supporting mandrels.
The pre-registering system is controlled by the central processor used for the automatic decks positioning which automatically prepares all the sleeve mandrels in phase at machine start up.
Auto register control
Longitudinal print registration by remote controls located near by the printing stand and near by the monitor of the video-scanner when this unit is supplied。
The longitudinal printing registration, is permitted by a difference of rotation speed of the plate sleeve mandrel. The registration length is consequently infinite
Side print registration motorized operated through remote controls located near by the printing stand and near by the monitor of the video-scanner when this unit is supplied
The first color group is the benchmark and the behind printing unit registers automatically according to the first color group.
The automatic registration controller can adjust the Phrase Position of the servo motor according to the detected error, realizing the quick registration and improving the operating quality and the extent of automation, so the machine greatly reduces the labor intensity and the attrition rate of raw materials.
When host engine stops, it maintains the registration position
When host engine runs, it registers automatically.
Inking system (Specified with auto washing system)
Inking system by enclosed chambered doctor blade system. The chamber is provided of inlet and outlet ports for the ink circulation. Side sealing system to close laterally the chamber.
The alignment and pressure set up of the blades against the anilox roller, is obtained by specially designed mechanical device located on the side supports. This system ensures the stable pressure for the inking system.
A stainless-steel ink tray, located under each printing unit, collects ink surplus during working and cleaning operations. The trays are mounted on quick release supports to facilitate replacement.
Each station has independent ink circulation system.
Printing pressure setting system.
Printing decks are moved to their printing position automatically, depending on the repeat lengths selected. Each printing unit is moved throughout two high precision ball screws, and driven by four servo-motors. 2 motors control the movement of each plate cylinder supports (1 motor each supporting side), 2 motors control the movement of each anilox cylinder supports (1 motor each supporting side)
The position of each support, on each side, is precisely controlled by an encoder mounted on each motor.
Operator decks positioning system interface is by the central industrial processor of the machine.
Sequential printing pressures release system.
Sequential printing pressures quick release during machine stop cycles. When machine stop is activated, the pressures of the anilox rollers from the plate cylinders are released immediately in order to stop ink transfer on the plates. The plate rollers pressures against the web, are released later after a pre-selected time to permit complete ink transfer on to the web, in order to get a clean plate when the machine stops.
The throw-off are activated by the four servo-motors used for the decks positioning system and for the printing pressures adjustment. The system ensures the return of the printing rollers in the correct position by a control carried out throughout encoders.
The throw-off are activated independently or simultaneously for all the printing units, through remote controls located on the machine main control panel.

Drying system on each unit

Each station equipped with 5th generation hot air-drying system. After printing, paper web goes up into the drying unit.
It adopts air blade design.
Every drying unit has its own blowing fan and air volume is adjustable. Meanwhile it has air circulation system which can lower down power consumption.
Within the drying unit, paper is supported by guide roller to make sure air flow will not impact web tension.

Image inspection system

Image inspecting camera can take pictures synchronously for the printing materials
Preset the inspecting position horizontally and vertically
It can magnify and observe the image with a fixed position to guarantee the printing quality.
High-definition resolution camera
High-definition color image monitor
One high speed paparazzi flashing light
Product can be magnified, and the dot can be see clearly

Infeed tension is closed loop controlled by servo motor from LENZE Germany.
One servo motor from LENZE Germany
One servo motor driven system from LENZE Germany
Nip roller, composed by a steel roller covered with rubber of hardness 65/70 shores, to lay paper on the tension roller.
The roller is mounted on sealed ball bearings, and is pressed laterally through two pneumatic cylinders, one on each side, having independent pressure control manually adjustable.

Auto Re-winder

Auto re-winder system.
Rewinding unit diameter is 1500 mm, minimum rewinding diameter is 500 mm
Pneumatic mandrel unit diameter 3’&6’ each
The rewinding is driven by the motor independently. It adopts tension control inverter to control and achieve constant tension control. The tightness of the paper can be easily controlled by setting the tension value without any manual intervention.
Using optoelectronic technology for automatic detection of the size of paper rolls, cutting and non-stop rewinding
When the paper is broken or cracked, the machine will stop automatically.

Quality control system-OPTION

100% quality control system

Anilox roller cleaner

Clean the anilox roller automatically

Control and monitoring the status of the device by internet from our technical department in our factory, diagnose the problem, upload and download the program by remote control to solve the problem in the shortest possible time

Remote assistance system

Environment requirements for workshop

Compressed air requirements: Flow of 0.6 cubic meters / minute, pressure 0.6MP

Ground pad to fix and the thickness of the floor should be no less than 20cm.

Auxiliary equipments, finishing and exclusions.

Auxiliary equipment.

Machine finishing.

The paper path is supported throughout the machine, by idle rollers constructed in aluminum alloy and supported on high slip bearings. The rollers are statically and dynamically balanced.

Electric cubicles fixed with air conditioning

The machine is supplied with a first-class high-quality finish. All the components and the covers are subject to an external finishing processes in order to supply proper protection from normal external wear and tear. The metal components are subject to a process of cleaning, rust protection coating and epoxy painting.

A group of cubicles, depending on machine specifications, contain all the electronic control cards and the electric and electronic auxiliary services. The power drives, the auxiliary servicing components (PLC, remote control-switches, relays etc.), the power connection with the main power switch, are cabled in separate sections one from the other.
The main electric board is separated from the machine structure, and connected to it through electric wires protected by sheaths and laid into a proper ducting system. It is usually located in the back side of the machine to a proper distance permitting full operative liberty, except different specifications instructed by the buyer/user.
Warnings: the local security laws where the machine will be installed, might be different from the standards used. Any modification to be carried out to the standard security systems and guarding, must be adequately outlined by the buyer/user to the seller/supplier, and in any case will be at buyer’s/user’s extra charge. In case such modifications will delay the delivery of the machine, the seller/supplier will not be deemed responsible for such delay.

Instruction and service documents

Tool kit.

The machine is supplied complete with all necessary instruction manuals, for the correct operational procedures, and for planned maintenance. The manuals are complete with all operator instructions and the schematic drawings for the electrical, pneumatic, and hydraulic installations. The instructions outlined in the technical documents must be followed scrupulously, and in case of any doubts the necessary instructions must be immediately checked by a competent engineer of the seller/supplier.

The machine is supplied with one (1) set of tools necessary for the ordinary maintenance. Additional tools and equipment for extraordinary repairs, are full responsibility of the buyer/user.

Web guide system(Italy ST)

Installed before printing station
Inspection: the edge precision ±0.02mm
Electronic web guide traction device. If there is any excursion in paper feeding, the system will have a constant and accurate adjustment.
Single side sensor for manual and automatic control and adjustment

Web cleaning unit（British technology high pressure vortex）

Double static rod design, first remove static electricity, then vacuum dust, then remove static electricity, used for cleaning printing materials
Through high-pressure fan to form a vacuum, with dust brush, through the separation of flow guide slot, high-pressure eddy current is formed on the paper surface, which can remove the dust of printing material more effectively

Infeed tension control system

Infeed tension impression roller is servo motor control for high register accuracy
One set servo motor,
One set servo driver,
One high-precision planetary gearbox,
Use the double rubber roller to clutch and feed paper and to ensure the tension .

Structure and features(patented technology)

Unit type with 6 printing station
Machine wallboard is used of HT250 cast iron
With N- type 4 guide rail design which can eliminate the shock vibration caused by the printing plate discontinuity. With heavy-duty high-precision ball screw, the printing pressure adjustment precision of plate roller bottom roller can reach 0.002 mm (patent technology can not be copied)

Ink system（patented technology）

Inking system by enclosed chambered doctor blade system. The chamber is provided of inlet and outlet ports for the ink circulation. Side sealing system to close laterally the chamber
The closed chamber doctor blade adopts a chamber design, and the knife holder can be easily separated from the main body, and the replacement of the blade is faster and lighter. (Proprietary support mechanism to ensure that the blade does not vibrate at high speed)
There is a special pressure relief device in the chamber , which will not cause the blade to deform due to overpressure in the chamber
The contact pressure between the scraper and the anilox roller is guaranteed by air pressure, and the pressure is adjusted by air pressure, and the wear of the blade can also ensure that the pressure remains unchanged. (Precision pressure regulation system can improve the service life of the blade and reduce the cost of use)
Each color group contains an air pressure ink supply system, stainless steel ink barrel, equipped with double pumps, ink supply and cleaning scraper holder, ink pipe and mesh roller are more convenient and fast, can be combined with automatic cleaning system
A stainless-steel ink tray, located under each printing unit, collects ink surplus during working and cleaning operations. The trays are mounted on quick release supports to facilitate replacement.
Coating on the inner surface of the ink chamber doctor blade system is easy for cleaning
Automatic ink supply device with magnetic filter function shall effectively extend the life of the anilox roller
Automatic cleaning system.

Anilox roller and plate cylinder auto positioning system

The plate cylinder and anilox roller automatically adjust the position according to the repeat length. The position adjustment is performed by a high-precision ball screw and four servo motors, and the plate roller and the anilox roller are respectively controlled by two servo motors.
The plate cylinders and anilox rollers of all selected printing stations are positioned at the same time
Positioning is completed automatically, which is easy and convenient

Printing station

Each printing station is driven by servo motor, the main motor is German servo motor and drive system
Each printing station has 6 servo motors

Anilox roller

Laser engraved ceramic anilox roller
There are ink splash guards on both sides.
The anilox roll will rotate to prevent the ink on its surface from drying and blocking holes on it when the machine stopped
The anilox roller and support device are installed on the linear guide rail, and the printing pressure is adjusted by the servo motor driven the high-precision ball screw with an accuracy of 0.002mm
6 High-precision anilox rollers (LPI decided by customer)
High-speed pressure adaptive system

Plate cylinder

Aluminum alloy-made plate cylinder
On the machine operation and non-operation side, the plate cylinder and the support structure are stably supported by four upper and lower linear guide
The plate cylinder and support device are installed on the linear guide rail, and the printing pressure is adjusted by the servo motor driven the high-precision ball screw with an accuracy of 0.002mm
Servo motor controls lateral movement of plate cylinders
Printing cylinder 6 pieces
High-speed pressure adaptive system

Printing adjustment and setting

Automatic registration in the paper-feeding direction and accurate registration with servo motor in the horizontal direction.
Register adjustment in the paper feeding direction can be adjusted at the printing unit and the main control console.
The paper feed direction registration is adjusted by plate cylinder servo motor phase compensation, 360° adjustment. This operation is completed when the machine is registered
Horizontal registration adjustment is realized at the printing unit and the main control console.
Horizontal registration is realized by moving plate cylinder, and the maximum adjustment distance is +10mm.
Printing pressure adjustment is precisely controlled by the ball screw and the servo motor with an accuracy of 0.002mm.
When the machine is stopped, the anilox roller pressure is immediately released, and the supply of ink to the plate cylinder is stopped. The plate cylinder continues to run for a specified period of time and then depressurizes to ensure complete transfer of residual ink on the plate.
The pressure is controlled by four servo motors of the printing station. The system ensures precise positioning of the printing station.
Simultaneous pressure on and off can be achieved.
Having pressure memory storage function, once adjusted, the pressure is directly in place for the same product
Dynamic adjustment for pressure, especially at high speed, automatically compensate the pressure and reduce waste due to pressure problem

What Our Clients Say

Laura

Our experience with the paper cup flexo printing machine and paper cup forming machine has been truly outstanding. What made a significant difference was the ability to customize the equipment to our specific production needs—this greatly enhanced our operational efficiency.

The support team was consistently available, always ready to assist with any inquiries, and provided quick, informative responses. We truly appreciated their thorough attention and dedication to meeting our requirements.

Exceptional service and reliable support—thank you!

What Our Clients Say

Contact us
